Memlabs Lab 1 Writeup
Memlabs Lab 1 Writeup
Lab 1
challenge description
1
My sister’s computer crashed. We were very fortunate to recover this memory dump. Your job is get all her important files from the system. From what we remember, we suddenly saw a black window pop up with some thing being executed. When the crash happened, she was trying to draw something. Thats all we remember from the time of crash.
solution
we have the memory dump and we run the basic command as we see a memory dump
volatility -f memory.raw image info
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
stapat@stapat:~/ehax/dfir/lab1$ volatility -f lab1.raw imageinfo
Volatility Foundation Volatility Framework 2.6.1
INFO : volatility.debug : Determining profile based on KDBG search...
Suggested Profile(s) : Win7SP1x64, Win7SP0x64, Win2008R2SP0x64, Win2008R2SP1x64_24000, Win2008R2SP1x64_23418, Win2008R2SP1x64, Win7SP1x64_24000, Win7SP1x64_23418
AS Layer1 : WindowsAMD64PagedMemory (Kernel AS)
AS Layer2 : FileAddressSpace (/mnt/data/symlinks/ehax/dfir/lab1/lab1.raw)
PAE type : No PAE
DTB : 0x187000L
KDBG : 0xf800028100a0L
Number of Processors : 1
Image Type (Service Pack) : 1
KPCR for CPU 0 : 0xfffff80002811d00L
KUSER_SHARED_DATA : 0xfffff78000000000L
Image date and time : 2019-12-11 14:38:00 UTC+0000
Image local date and time : 2019-12-11 20:08:00 +0530
it suggests that it’s profile is Win7SP1x64 so we check the processes running
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
stapat@stapat:~/ehax/dfir/lab1$ volatility -f lab1.raw --profile=Win7SP1x64 pslist
Volatility Foundation Volatility Framework 2.6.1
Offset(V) Name PID PPID Thds Hnds Sess Wow64 Start Exit
------------------ -------------------- ------ ------ ------ -------- ------ ------ ------------------------------ ------------------------------
0xfffffa8000ca0040 System 4 0 80 570 ------ 0 2019-12-11 13:41:25 UTC+0000
0xfffffa800148f040 smss.exe 248 4 3 37 ------ 0 2019-12-11 13:41:25 UTC+0000
0xfffffa800154f740 csrss.exe 320 312 9 457 0 0 2019-12-11 13:41:32 UTC+0000
0xfffffa8000ca81e0 csrss.exe 368 360 7 199 1 0 2019-12-11 13:41:33 UTC+0000
0xfffffa8001c45060 psxss.exe 376 248 18 786 0 0 2019-12-11 13:41:33 UTC+0000
0xfffffa8001c5f060 winlogon.exe 416 360 4 118 1 0 2019-12-11 13:41:34 UTC+0000
0xfffffa8001c5f630 wininit.exe 424 312 3 75 0 0 2019-12-11 13:41:34 UTC+0000
0xfffffa8001c98530 services.exe 484 424 13 219 0 0 2019-12-11 13:41:35 UTC+0000
0xfffffa8001ca0580 lsass.exe 492 424 9 764 0 0 2019-12-11 13:41:35 UTC+0000
0xfffffa8001ca4b30 lsm.exe 500 424 11 185 0 0 2019-12-11 13:41:35 UTC+0000
0xfffffa8001cf4b30 svchost.exe 588 484 11 358 0 0 2019-12-11 13:41:39 UTC+0000
0xfffffa8001d327c0 VBoxService.ex 652 484 13 137 0 0 2019-12-11 13:41:40 UTC+0000
0xfffffa8001d49b30 svchost.exe 720 484 8 279 0 0 2019-12-11 13:41:41 UTC+0000
0xfffffa8001d8c420 svchost.exe 816 484 23 569 0 0 2019-12-11 13:41:42 UTC+0000
0xfffffa8001da5b30 svchost.exe 852 484 28 542 0 0 2019-12-11 13:41:43 UTC+0000
0xfffffa8001da96c0 svchost.exe 876 484 32 941 0 0 2019-12-11 13:41:43 UTC+0000
0xfffffa8001e1bb30 svchost.exe 472 484 19 476 0 0 2019-12-11 13:41:47 UTC+0000
0xfffffa8001e50b30 svchost.exe 1044 484 14 366 0 0 2019-12-11 13:41:48 UTC+0000
0xfffffa8001eba230 spoolsv.exe 1208 484 13 282 0 0 2019-12-11 13:41:51 UTC+0000
0xfffffa8001eda060 svchost.exe 1248 484 19 313 0 0 2019-12-11 13:41:52 UTC+0000
0xfffffa8001f58890 svchost.exe 1372 484 22 295 0 0 2019-12-11 13:41:54 UTC+0000
0xfffffa8001f91b30 TCPSVCS.EXE 1416 484 4 97 0 0 2019-12-11 13:41:55 UTC+0000
0xfffffa8000d3c400 sppsvc.exe 1508 484 4 141 0 0 2019-12-11 14:16:06 UTC+0000
0xfffffa8001c38580 svchost.exe 948 484 13 322 0 0 2019-12-11 14:16:07 UTC+0000
0xfffffa8002170630 wmpnetwk.exe 1856 484 16 451 0 0 2019-12-11 14:16:08 UTC+0000
0xfffffa8001d376f0 SearchIndexer. 480 484 14 701 0 0 2019-12-11 14:16:09 UTC+0000
0xfffffa8001eb47f0 taskhost.exe 296 484 8 151 1 0 2019-12-11 14:32:24 UTC+0000
0xfffffa8001dfa910 dwm.exe 1988 852 5 72 1 0 2019-12-11 14:32:25 UTC+0000
0xfffffa8002046960 explorer.exe 604 2016 33 927 1 0 2019-12-11 14:32:25 UTC+0000
0xfffffa80021c75d0 VBoxTray.exe 1844 604 11 140 1 0 2019-12-11 14:32:35 UTC+0000
0xfffffa80021da060 audiodg.exe 2064 816 6 131 0 0 2019-12-11 14:32:37 UTC+0000
0xfffffa80022199e0 svchost.exe 2368 484 9 365 0 0 2019-12-11 14:32:51 UTC+0000
0xfffffa8002222780 cmd.exe 1984 604 1 21 1 0 2019-12-11 14:34:54 UTC+0000
0xfffffa8002227140 conhost.exe 2692 368 2 50 1 0 2019-12-11 14:34:54 UTC+0000
0xfffffa80022bab30 mspaint.exe 2424 604 6 128 1 0 2019-12-11 14:35:14 UTC+0000
0xfffffa8000eac770 svchost.exe 2660 484 6 100 0 0 2019-12-11 14:35:14 UTC+0000
0xfffffa8001e68060 csrss.exe 2760 2680 7 172 2 0 2019-12-11 14:37:05 UTC+0000
0xfffffa8000ecbb30 winlogon.exe 2808 2680 4 119 2 0 2019-12-11 14:37:05 UTC+0000
0xfffffa8000f3aab0 taskhost.exe 2908 484 9 158 2 0 2019-12-11 14:37:13 UTC+0000
0xfffffa8000f4db30 dwm.exe 3004 852 5 72 2 0 2019-12-11 14:37:14 UTC+0000
0xfffffa8000f4c670 explorer.exe 2504 3000 34 825 2 0 2019-12-11 14:37:14 UTC+0000
0xfffffa8000f9a4e0 VBoxTray.exe 2304 2504 14 144 2 0 2019-12-11 14:37:14 UTC+0000
0xfffffa8000fff630 SearchProtocol 2524 480 7 226 2 0 2019-12-11 14:37:21 UTC+0000
0xfffffa8000ecea60 SearchFilterHo 1720 480 5 90 0 0 2019-12-11 14:37:21 UTC+0000
0xfffffa8001010b30 WinRAR.exe 1512 2504 6 207 2 0 2019-12-11 14:37:23 UTC+0000
0xfffffa8001020b30 SearchProtocol 2868 480 8 279 0 0 2019-12-11 14:37:23 UTC+0000
0xfffffa8001048060 DumpIt.exe 796 604 2 45 1 1 2019-12-11 14:37:54 UTC+0000
0xfffffa800104a780 conhost.exe 2260 368 2 50 1 0 2019-12-11 14:37:54 UTC+0000
we see WinRAR.exe , mspaint.exe and cmd.exe
so cmd.exe must be the black screen she saw when her screen died so we run the consoles command to see the cmd.exe output
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
stapat@stapat:~/ehax/dfir/lab1$ volatility -f lab1.raw --profile=Win7SP1x64 consoles
Volatility Foundation Volatility Framework 2.6.1
**************************************************
ConsoleProcess: conhost.exe Pid: 2692
Console: 0xff756200 CommandHistorySize: 50
HistoryBufferCount: 1 HistoryBufferMax: 4
OriginalTitle: %SystemRoot%\system32\cmd.exe
Title: C:\Windows\system32\cmd.exe - St4G3$1
AttachedProcess: cmd.exe Pid: 1984 Handle: 0x60
----
CommandHistory: 0x1fe9c0 Application: cmd.exe Flags: Allocated, Reset
CommandCount: 1 LastAdded: 0 LastDisplayed: 0
FirstCommand: 0 CommandCountMax: 50
ProcessHandle: 0x60
Cmd #0 at 0x1de3c0: St4G3$1
----
Screen 0x1e0f70 X:80 Y:300
Dump:
Microsoft Windows [Version 6.1.7601]
Copyright (c) 2009 Microsoft Corporation. All rights reserved.
C:\Users\SmartNet>St4G3$1
ZmxhZ3t0aDFzXzFzX3RoM18xc3Rfc3Q0ZzMhIX0=
Press any key to continue . . .
**************************************************
ConsoleProcess: conhost.exe Pid: 2260
Console: 0xff756200 CommandHistorySize: 50
HistoryBufferCount: 1 HistoryBufferMax: 4
OriginalTitle: C:\Users\SmartNet\Downloads\DumpIt\DumpIt.exe
Title: C:\Users\SmartNet\Downloads\DumpIt\DumpIt.exe
AttachedProcess: DumpIt.exe Pid: 796 Handle: 0x60
----
CommandHistory: 0x38ea90 Application: DumpIt.exe Flags: Allocated
CommandCount: 0 LastAdded: -1 LastDisplayed: -1
FirstCommand: 0 CommandCountMax: 50
ProcessHandle: 0x60
----
Screen 0x371050 X:80 Y:300
Dump:
DumpIt - v1.3.2.20110401 - One click memory memory dumper
Copyright (c) 2007 - 2011, Matthieu Suiche <http://www.msuiche.net>
Copyright (c) 2010 - 2011, MoonSols <http://www.moonsols.com>
Address space size: 1073676288 bytes ( 1023 Mb)
Free space size: 24185389056 bytes ( 23064 Mb)
* Destination = \??\C:\Users\SmartNet\Downloads\DumpIt\SMARTNET-PC-20191211-
143755.raw
--> Are you sure you want to continue? [y/n] y
+ Processing...
we can see a command named St4G3$1 run and give a output of
1
ZmxhZ3t0aDFzXzFzX3RoM18xc3Rfc3Q0ZzMhIX0=
after decoding this we got the flag 1
1
flag{th1s_1s_th3_1st_st4g3!!}
flag 2
for the flag 2 we dumped the process 2424 (mspaint.exe) by volatility -f lab1.raw --profile=Win7SP1x64 memdump -p 2424 -D mspaint/ we have 2424.dmp
1
2
stapat@stapat:~/ehax/dfir/lab1/mspaint$ file 2424.dmp
2424.dmp: data

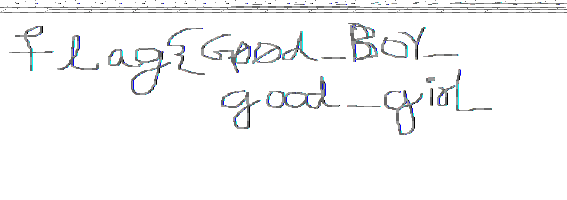

making the data file .data and opening it with gimp gives us something , after 2-3 hours of adjusting its height and width ( at the end seeing another writeup) we get the flag flipped , so flipping it gives us the flag. height= ~10000 width= ~1250
1
flag 2 = flag{Good_Boy_good_girl}
flag 3

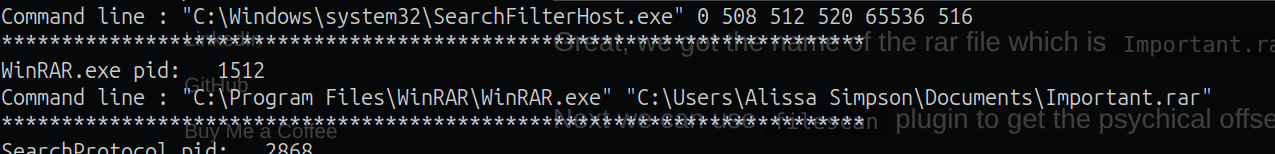

we have the winrar.exe process and we got the Important.rar opened in the cmdline output
extracting the file with dumpfiles plugin but we need to have the physical offset for this so for physical offset in the memory dump we use the filescan plugin
1
2
3
4
5
6
7
8
stapat@stapat:~/ehax/dfir/lab1$ volatility -f lab1.raw --profile=Win7SP1x64 filescan | grep Imp
Volatility Foundation Volatility Framework 2.6.1
0x000000003ea56710 2 0 R--r-d \Device\HarddiskVolume2\Windows\System32\Tasks\Microsoft\Windows\Customer Experience Improvement Program\KernelCeipTask
0x000000003ed08a60 2 0 R--r-d \Device\HarddiskVolume2\Windows\System32\Tasks\Microsoft\Windows\Customer Experience Improvement Program\UsbCeip
0x000000003f6dbbc0 2 0 R--r-d \Device\HarddiskVolume2\Windows\System32\Tasks\Microsoft\Windows\Customer Experience Improvement Program\Consolidator
0x000000003fa3ebc0 1 0 R--r-- \Device\HarddiskVolume2\Users\Alissa Simpson\Documents\Important.rar
0x000000003fac3bc0 1 0 R--r-- \Device\HarddiskVolume2\Users\Alissa Simpson\Documents\Important.rar
0x000000003fb48bc0 1 0 R--r-- \Device\HarddiskVolume2\Users\Alissa Simpson\Documents\Important.rar
we can use any offset
1
2
3
stapat@stapat:~/ehax/dfir/lab1$ volatility -f lab1.raw --profile=Win7SP1x64 dumpfiles -Q 0x000000003fb48bc0 -D .
Volatility Foundation Volatility Framework 2.6.1
DataSectionObject 0x3fb48bc0 None \Device\HarddiskVolume2\Users\Alissa Simpson\Documents\Important.rar
now we have file.None.0xfffffa8001034450.dat
making this Important.rar and unraring it via unrar e Important.rar
1
2
3
4
5
6
7
8
9
10
11
stapat@stapat:~/ehax/dfir/lab1$ unrar e imp.rar
UNRAR 7.00 freeware Copyright (c) 1993-2024 Alexander Roshal
Archive comment:
Password is NTLM hash(in uppercase) of Alissa's account passwd.
Extracting from imp.rar
Enter password (will not be echoed) for flag3.png:
using the hashdump plugin we get the password hashes
1
2
3
4
5
6
7
stapat@stapat:~/ehax/dfir/lab1$ volatility -f lab1.raw --profile=Win7SP1x64 hashdump
Volatility Foundation Volatility Framework 2.6.1
Administrator:500:aad3b435b51404eeaad3b435b51404ee:31d6cfe0d16ae931b73c59d7e0c089c0:::
Guest:501:aad3b435b51404eeaad3b435b51404ee:31d6cfe0d16ae931b73c59d7e0c089c0:::
SmartNet:1001:aad3b435b51404eeaad3b435b51404ee:4943abb39473a6f32c11301f4987e7e0:::
HomeGroupUser$:1002:aad3b435b51404eeaad3b435b51404ee:f0fc3d257814e08fea06e63c5762ebd5:::
Alissa Simpson:1003:aad3b435b51404eeaad3b435b51404ee:f4ff64c8baac57d22f22edc681055ba6:::
the second one after “:” is the ntlm hash
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
stapat@stapat:~/ehax/dfir/lab1$ unrar e imp.rar
UNRAR 7.00 freeware Copyright (c) 1993-2024 Alexander Roshal
Archive comment:
Password is NTLM hash(in uppercase) of Alissa's account passwd.
Extracting from imp.rar
Enter password (will not be echoed) for flag3.png:
The specified password is incorrect.
Enter password (will not be echoed) for flag3.png:
Extracting flag3.png OK
All OK

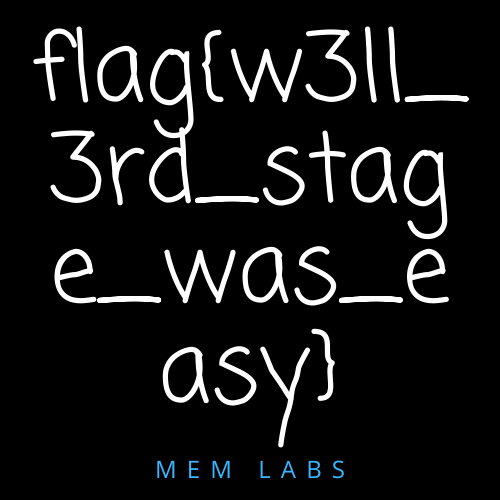

we got the flag 3 as well
Flags
1
2
3
flag1= flag{th1s_1s_th3_1st_st4g3!!}
flag2= flag{Good_Boy_good_girl}
flag3= flag{w3ll_3rd_stage_was_easy}
